CHANGZHOU UNITED WIN PACK CO.، LTD
| محل منبع: | چین |
|---|---|
| نام تجاری: | United Win |
| شماره مدل: | YZJ-4/750 |
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
| قیمت: | USD |
| جزئیات بسته بندی: | جعبه چوبی |
| زمان تحویل: | سه ماه |
| شرایط پرداخت: | L/C، T/T |
| قابلیت ارائه: | 3 ست در ماه |
| نام: | بافندگی مدور | مدل: | UWCL-12/5400 |
|---|---|---|---|
| <i>NO.</i> <b>نه</b> <i>of shuttle</i> <b>از شاتل</b>: | 12 عدد | حداکثر عرض تاشو: | 2700 میلی متر |
| <i>Max.</i> <b>حداکثر</b> <i>Open width</i> <b>عرض باز</b>: | 5400 میلی متر | شماره های تار: | 2800 میلی متر |
| <i>NO.</i> <b>نه</b> <i>Of Warp</i> <b>از تار</b>: | 2880 عدد | سرعت: | 120 تا 180 دور در دقیقه |
| نیروی اصلی: | 15 کیلو وات | محل منبع: | چین |
| تضمین: | 1 سال | ||
| برجسته کردن: | دستگاه چرخ دار با سرعت بالا,چهار دستگاه چرخ دار,وزنه صرفه جویی,4 shuttle round loom,Energy Saving Round Loom |
||
4 shuttle high speed energy-saving round loom YZJ-4/750
Description:

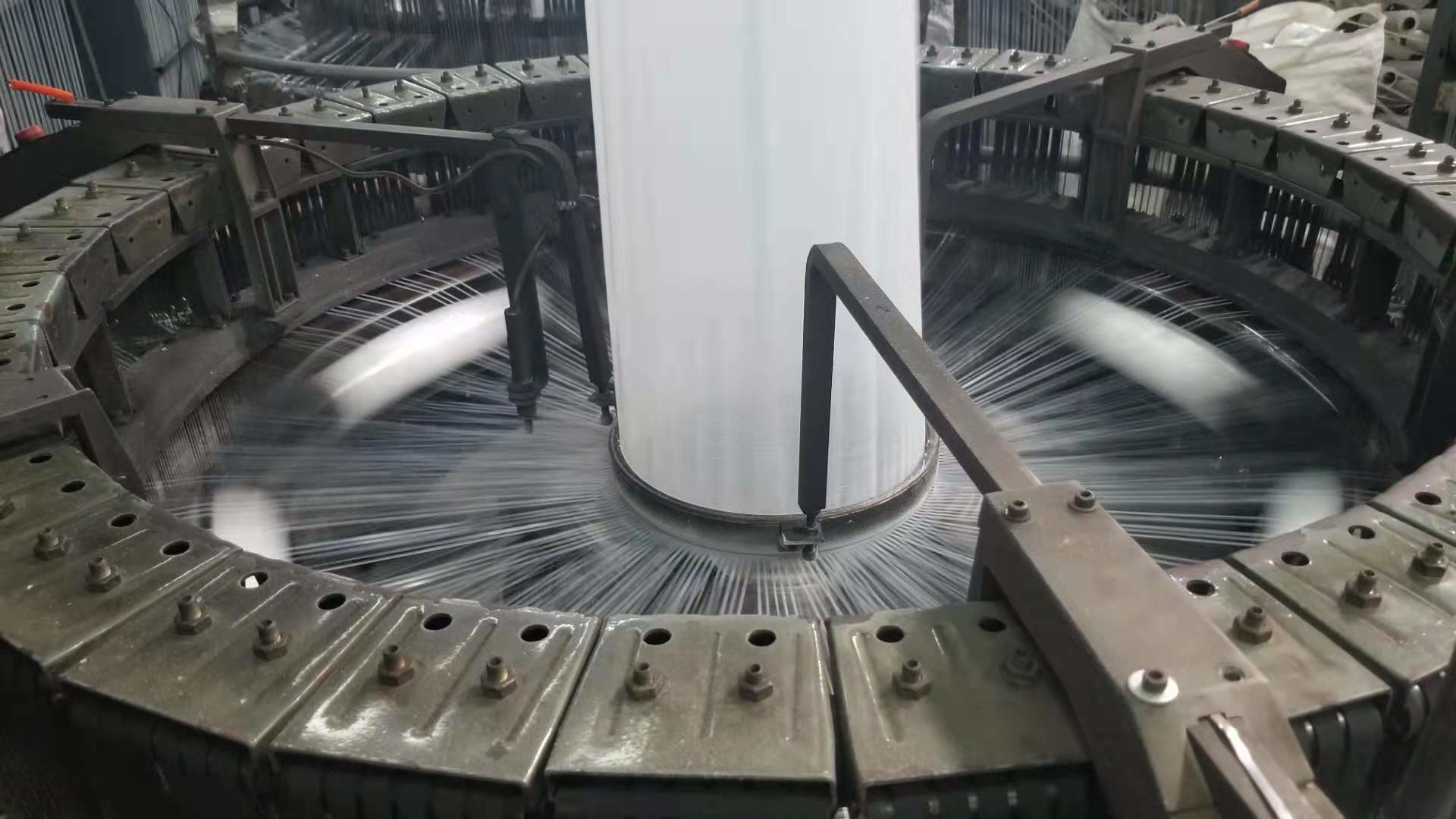

UW series circular loom, which adopts the SCM (Single Chip Microcomputer), carry out centralized control to the system; the parameter is set up and changed on HMI (Human Machine Interface). Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail. Users may conveniently process the production management and control the system in real time on the HMI.Using advanced small CAM convex and swing arm roller drive, easy and smooth operation.
For same folded diameter, weaving speed and weft, time interval of weft change will be 2 times of 6 shuttles, 1.5 times of 8 shuttles and 1.2 time of 10 shuttles respectively, such that continuous running time of 12 shuttles will be longer than that of 6 shuttles,8 shuttles and 10 shuttles, if figured for 2-3 man operating two set of 12 shuttles circular loom, the efficiency and economy will be perfect.
Specifications:
| No.s | Mould | Shuttle Qty.(pcs) | Max.fold width(mm) | Max. Open width(mm) | Warp no.s(pcs) | Speed(RPM) | Main power(KW) |
| 1 | UWCL-24/16000 | 24 | 8200 | 16400 | 8000 | 5~25 | 37 |
| 2 | UWCL-20/11000 | 20 | 5500 | 11000 | 5376 | 5~28 | 22 |
| 3 | UWCL-16/8300 | 16(12) | 4150 | 8300 | 4800 | 5~41 | 18.5 |
| 4 | UWCL-12/7800 | 12(14) | 3900 | 7800 | 4400 | 5~41 | 18.5 |
| 5 | UWCL-12/7200 | 12(14) | 3600 | 7200 | 3780 | 5~45 | 18.5 |
| 6 | UWCL-12/6500 | 12 | 3250 | 6500 | 3520 | 5~51 | 11/15 |
| 7 | UWCL-12/6000 | 12(10) | 3050 | 6100 | 3200 | 5~51 | 11/15 |
| 8 | UWCL-12/5400 | 12(10) | 2700 | 5400 | 2880 | 5~64 | 11/15 |
| 9 | UWCL-10/4800 | 10(8) | 2400 | 4800 | 2880 | 5~64 | 11 |
| 10 | UWCL-10/4400 | 10(8) | 2100 | 4500 | 2740 | 5~72 | 7.5/11 |
| 11 | UWCL-8/3500 | 8 | 1650 | 3600 | 1996 | 5~80 | 7.5 |
| 12 | UWCL-6/3200 | 6(8) | 1400 | 3000 | 1820 | 5~80 | 7.5 |
| 13 | UWCL-6/2700 | 6 | 1350 | 2700 | 1510 | 5~100 | 7.5 |
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
7. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.
Our engineers will take a solution video according your description.
